Cleanroom Products

ClearSphere provides a range of high quality systems and products to suit its customer’s cleanroom and laboratory requirements.



blank
ClearSphere provides a range of high quality systems and products to suit its customer’s cleanroom and laboratory requirements.
spacer
spacer

Modular Walls

PVC-Coated Sheet Steel

  • Total flush composite wall system
  • 50mm modular design
  • Aluminium honeycomb core
  • FM approved
  • Flush PVC welded joints
  • Adjustable floor tracks
  • Integrated services chase
  • Integrated return air shafts
  • Engineered system to suit site specific layout
click to enlarge - ClearSphere PVC-Coated Sheet Steel Modular Wall

Back to top of page

Polyester-Coated Sheet Steel

  • CRA total flush system
  • 80mm modular design
  • Internal services chase
  • FM approved system
  • Rockwool core/aluminum sub frame
  • Pre-formed corners
  • Flush silicone sealed joints
  • Engineered system to suit site specific layout
click to enlarge - ClearSphere Polyester-Coated Sheet Steel Modular Wall

High Pressure Laminate

  • Total flush system
  • 50mm modular design
  • Phenolic resin high pressure laminate
  • Aluminium honeycomb or rockwool core
  • High mechanical strength and impact resistance
  • FM approved
  • Flush silicone sealed joints
  • Flush integrated services

click to enlarge - ClearSphere High Pressure Laminate Modular Wall

Stainless Steel

  • CRA total flush design
  • 50 or 80 mm modular design
  • Total flush options
  • 316L or 304 finishes
  • Aluminium honeycomb or rockwool core
  • High mechanical strength and impact resistance
  • FM approved
  • Flush silicone sealed joints
click to enlarge - ClearSphere Stainless Steel Modular Wall

Powder-Coated Aluminium

  • Pharma system 79
  • 79mm modular stud wall system
  • Aluminium stud system with finish panel of 6mm reynobond comprising polyethylene layer and powder-coated aluminum paint finish
  • Suitable for high level of mechanical and electrical service requirements
  • Maintains room classification to the one side even while equipment changes or shutdown are on-going on the other side.
  • High mechanical strength and impact resistance
  • Inert and high chemical resistance
  • FM approved
  • Flush silicone sealed joints
click to enlarge - ClearSphere Powder-Coated Aluminium Modular Wall

IFW Partial Flush Option

  • Polyester-coated sheet steel
  • Modular design in 40mm, 60mm, 80mm & 100mm sizes
  • FM approved rockwool core
  • Fire rated options
  • Flush silicone sealed joints
  • Optional PIR/PU cores
  • Cost effective solution

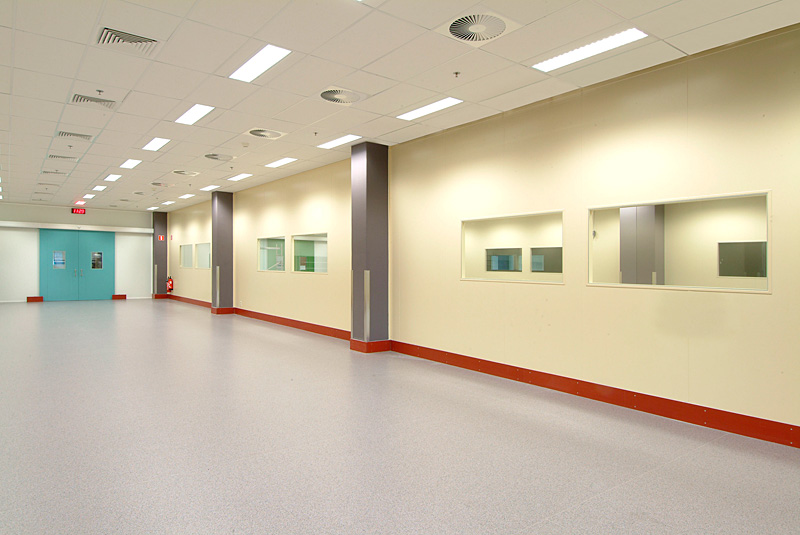

click to enlarge - ClearSphere IFW Partial Flush Modular Wall

Glass

  • Modular design toughened safety glass wall system
  • Suitable for opening up areas to provide more light
  • Non particle shed
  • Available up to 4 metres in height
  • Suitable for return air Shafts
  • Flush Silicone Sealed Joints
click to enlarge - ClearSphere Glass Modular Wall

Softwall

  • Clear RF welded PVC sheet
  • Demountable stainless steel tubular frame
  • T-Bar ceiling complete with integrated lighting and filtration
  • Low cost
  • Interchangeable framework
click to enlarge - ClearSphere Softwall

Acoustic

  • 80/100mm modular acoustic wall system
  • Polyester-coated sheet steel or HPL
  • Perforated face
  • Integrated glazing/doors
  • Flush silicone sealed joints

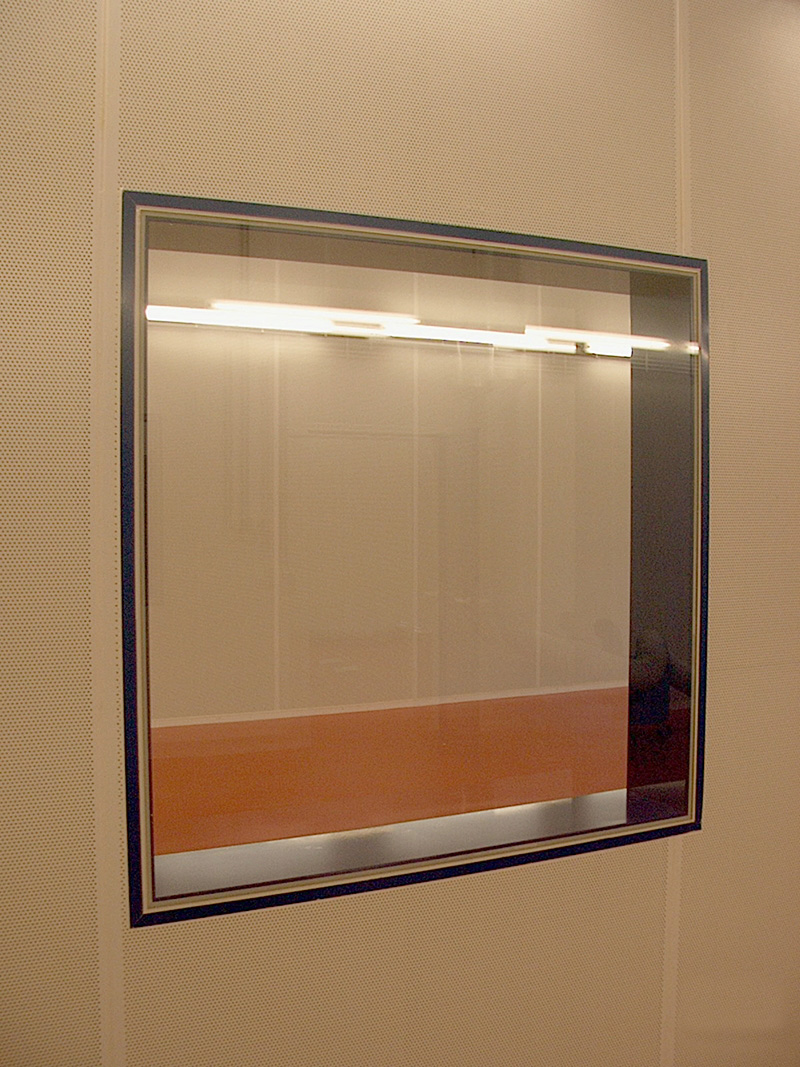

click to enlarge - ClearSphere Acoustic Modular Wall
linebreak

Modular Ceilings



Walk On



PVC-Coated Sheet Steel

  • 50mm modular design
  • Total flush composite system
  • Walk-On system
  • Aluminium honeycomb core
  • FM approved
  • Flush PVC welded joints
click to enlarge - ClearSphere Walk On Modular Ceiling Back to top of page

Polyester-Coated Sheet Steel

  • 80mm modular design
  • Walk-On system
  • CRA total flush option
  • IFW partial flush option
  • FM approved rockwool core
  • Fire rated options
  • Flush silicone sealed joints
click to enlarge - ClearSphere Walk On Modular Ceiling

High Pressure Laminate (HPL)

  • 50mm modular design
  • Phenolic resin high pressure laminate
  • Aluminium honeycomb or rockwool core
  • High mechanical strength and impact resistance
  • FM approved
  • Flush silicone sealed joints
  • Suitable for frequent wash down
click to enlarge - ClearSphere Walk On Modular Ceiling

Modular Ceiling - Non Walk On



Clean-Ceil

  • Polyester-coated sheet steel
  • Total flush suspended ceiling
  • Concealed light weight rigid aluminum grid system
  • No constraints on room layout
  • Sealed system
  • Flush silicone sealed joints
click to enlarge - ClearSphere Non-Walk On Modular Ceiling Back to top of page

High Pressure Laminate

  • Total flush system
  • Modular T grid system
  • Flexibility while positioning filters and light fittings
  • CGMP ceiling tiles are flush to T grid system
  • Flexible and easy to assemble
  • High chemical/solvent resistance



click to enlarge - ClearSphere Non-Walk On Modular Ceiling
linebreak

Doors



PVC-Coated Sheet Steel Door

  • Matching system 50 mm total flush doors
  • Single and double leaf
  • Integrated drop seals to maintain room pressures
  • Flush vision panels
  • Aluminium honeycomb core
  • PVC-welded joints
  • FM approved
  • Choice of ironmongery and standard RAL colours
  • Interlocking options
click to enlarge - ClearSphere - PVC-Coated Sheet Steel Door Back to top of page

Polyester-Coated Sheet Steel Door

  • Matching system CRA total flush doors
  • Single and double leaf
  • Integrated flush stainless steel kick plates
  • Integrated drop seals to maintain room pressures
  • Flush vision panels
  • Rockwood core
  • FM approved
  • Choice of ironmongery and standard RAL Colours
  • Interlocking options
  • Automatic operators
click to enlarge - ClearSphere Polyester-Coated Sheet Steel Door

High Pressure Laminate Door

  • Matching system 50 mm total flush doors
  • Single and double leaf
  • Integrated drop seals to maintain room pressures
  • Flush vision panels
  • Aluminium honeycomb core
  • FM approved
  • Choice of ironmongery and standard RAL colours
  • Interlocking options



click to enlarge - ClearSphere High Pressure Laminate Door

GRP Door

  • Glass Reinforced polyester doors
  • Pressure moulded smooth seamless construction
  • High chemical and impact resistance
  • Fire rated options
  • Water, steam, moisture resistant
  • Permanent built-in colour
  • 25 year guarantee
  • Integrated Drop Seals to maintain room pressures
  • Flush vision panels
  • FM approved
  • Choice of ironmongery and standard RAL Colours
  • Interlocking options

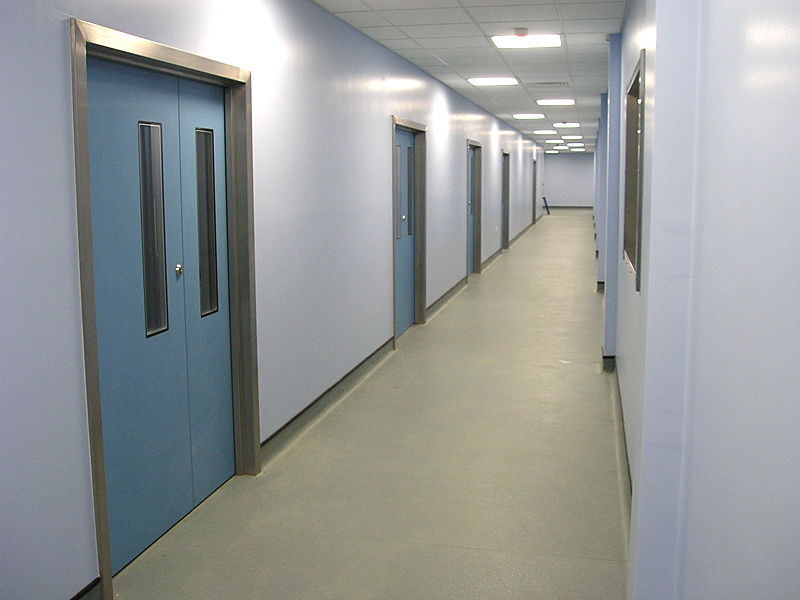

click to enlarge - ClearSphere GRP Door

Glass Door

  • Hinged and sliding cleanroom glass doors
  • Toughened safety glass
  • Hermetical seals
  • Auto gear
  • Interlock options
click to enlarge - ClearSphere Glass Door

Rapid Roll Door

  • Range of fast acting roller doors
  • Internal and external use
  • Cleanroom application
  • Smooth rapid action
  • Energy saving
  • Counter-balance system
  • Vision panels
  • Choice of standard RAL Colours
  • Interlocking options
click to enlarge - ClearSphere Rapid Roll Door

Sliding Door

  • Range of matching system sliding doors
  • Manual and automatic
  • Safe and hazardous area options, ATEX/CE
  • Interlock options
click to enlarge - ClearSphere Sliding Door
linebreak

Windows



Single and Continuous Glazing

  • Range of system viewing windows
  • Flush double glazed
  • Laminated or toughened safety glass
  • Available in various sizes up to 2400 mm high
  • Silicone sealed including gel moisture absorption system to eliminate fogging
  • Up to 1-Hour fire certified systems available
click to enlarge - ClearSphere Single and Continuous Glazing Back to top of page
linebreak

Lighting



Recessed Light Fittings

  • Range of cleanroom light fittings to suit both positive and negative pressure cleanroom applications
  • Standard electrical ratings to IP65 plus ATEX rating for zones 1 and 2
  • Various physical sizes and wattage available including emergency back-up
  • 2 x 18 W
  • 4 x 18 W
  • 2 x 36 W
  • 3 x 36 W

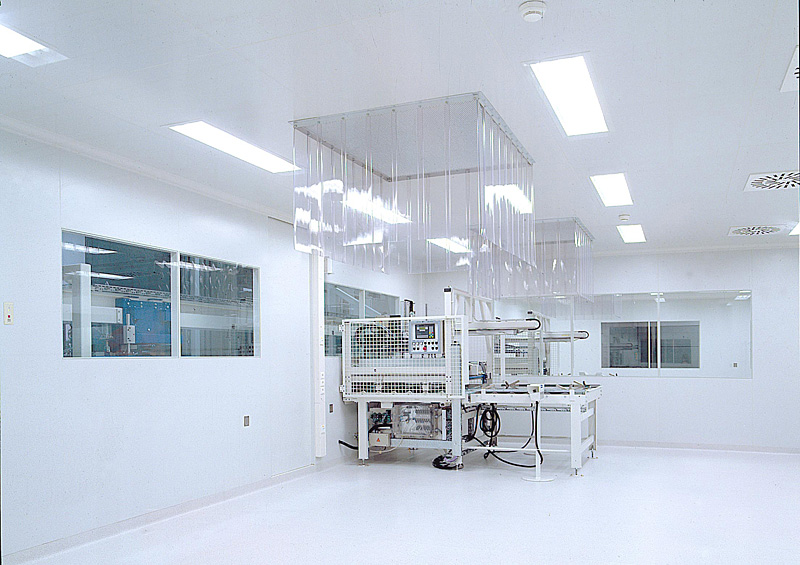

click to enlarge - ClearSphere Recessed Light Fittings Back to top of page

Laminar Flow Light Fittings

  • Range of surface mount LAF Light Fixtures to suit Class A applications
  • Vertical or Horizontal mount system
  • Acrylic Wrap Around Diffusers
  • Manufactured to length
  • Choice of Wattage available
click to enlarge - ClearSphere Laminar Flow Light Fittings
linebreak

Coving



PVC Coving

  • Wall to wall and wall to ceiling coving
  • Aluminium backing angle
  • Rubber edge profile
  • No silicone seal required
  • Colour options
  • Available in 5 metre lengths
click to enlarge - ClearSphere PVC Coving Back to top of page

Aluminium Coving – Powder Coated or Natural Anodised

  • Wall to wall and wall to ceiling coving
  • Aluminium backing angle
  • Internal corners
  • Silicone seal required
  • Colour options
click to enlarge - ClearSphere Aluminium Coving
linebreak

Wall Protection



Floor Mounted Bumper Rail

  • Both electro polished and satin stainless steel tubular rail systems
  • Concealed floor fixings
click to enlarge - ClearSphere Floor Mounted Bumper Rail Back to top of page

Wall Mounted Bumper Rail

  • Both impact and abrasion protection rails systems
  • Sealed welded ends
  • All in compliance with cGMP
click to enlarge - ClearSphere Wall Mounted Bumper Rail
linebreak

Flooring



Choice of Cleanroom Flooring available

  • Mipolam 500 and 100 anti-static
  • Welded joints and integrated coving
  • Epoxy
  • Choice of colours available
  • Floor preparation and DPM
click to enlarge - ClearSphere Cleanroom Flooring Back to top of page

Structural Steel and Mezzanine Flooring

ClearSphere as part of their turnkey package provide:

  • Structural Steel Support Systems
  • Mezzanine Floors
  • Railings & Access Stairs
click to enlarge - ClearSphere Structural Steel and Mezzanine Flooring
linebreak

HVAC



Mechanical and Electrical Fit Out

ClearSphere provides a turnkey package, including:

  • AHU design and installation
  • Ducting
  • Mechanical pipe work
  • Chillers
  • Electrical wiring
  • BMS controls
click to enlarge - ClearSphere Mechanical and Electrical Fit Out Back to top of page
linebreak

Clean Modules - Portable Units


  • Modular and flexible system to meet customer requirements
  • Pre-engineered to keep costs down
  • Quickly assembled to meet national and international standards
  • Sizes range from small portable units to large permanent installations
  • System includes HVAC, mechanical and electrical fit out.
click to enlarge - ClearSphere Clean Modules - Portable Back to top of page
linebreak

Laboratory Furniture



ClearSphere provides a range of modular laboratory furniture, equipment and Fittings.

Our Modular furniture systems are manufactured to order and include:

  • School, University and hospital laboratories
  • Industrial and pharmaceutical laboratories
  • Cleanroom furniture
  • Formica chemtop solid laminate worktops
  • Chemslab epoxy worktops and sinks
  • Broen service outlets
  • Pland stainless steel sinks
  • Formaic surell solid surfacing
  • Safety cabinets and fume hoods



click to enlarge - ClearSphere Laboratory Furniture Back to top of page
linebreak

Accessories



Full Range of Cleanroom Transfer Hatches

  • ClearSphere product transfer hatches are all bespoke in design and application and available in a range of sizes and materials subject to requirement
  • Wall and or floor mounted
  • Single or double door arrangements
  • Stainless steel
  • Polypropoylene
  • HPL phenolic
  • Powder coated steel
  • Glass
  • Mechanical or electric interlock control
  • Powered Hepa filter control
  • UV lighting
  • Integrated intercom
  • Up to 1 hour fire certified
click to enlarge - ClearSphere Cleanroom Transfer Hatches Back to top of page

Wall Mounted Emergency Escape

  • Personnel size stainless steel framed unit complete with 5 mm clear acrylic break-out panel
  • Sealed system
  • Rip-chord release
click to enlarge - ClearSphere Wall Mounted Emergency Escape

Range of Material and Personnel Air Showers

  • ClearSphere air-showers are bespoke in design and application and available in a range of sizes and materials subject to requirement
  • Stainless steel
  • Powder coated steel
  • Glass
  • Electric interlock control
  • Pre and Hepa filtration
  • Adjustable air nozzles
  • Adjustable cleaning cycle
  • Automatic operation
  • Optional UV lighting
  • Optional Air Ionization facility
click to enlarge - ClearSphere Material and Personnel Air Showers

Cleanroom Step-Over Bench and Ancillaries

  • Range of gowning room step-over benches and furniture subject to room design/personnel requirements all manufactured to specification
  • Perforated or full stainless steel with or without side panels
  • HPL phenolic with recessed base to suit flush floor finishes
  • Clothes lockers, mop hat containers, Hepa vacuum cleaners
click to enlarge - ClearSphere Cleanroom Step-Over Bench and Ancillaries
linebreak

Filtration



ClearSphere provide a range of cleanroom filtration products including:

  • HEPA & ULPA filters
  • Bespoke filter housings
  • Safe-change housings
  • Scan probes, safe change bags and rings



click to enlarge - ClearSphere Filtration Back to top of page
linebreak
Home | Solutions | Cleanroom Products | Containment Products | Contact | Jobs
linebreak
© 2008-2012 ClearSphere
Site Map | Website Design
