Containment Products

ClearSphere designs, manufactures, installs and validates containment solutions. It provides bespoke and standard equipment to satisfy its clients’ specific requirements. Its range of products and services include:



blank

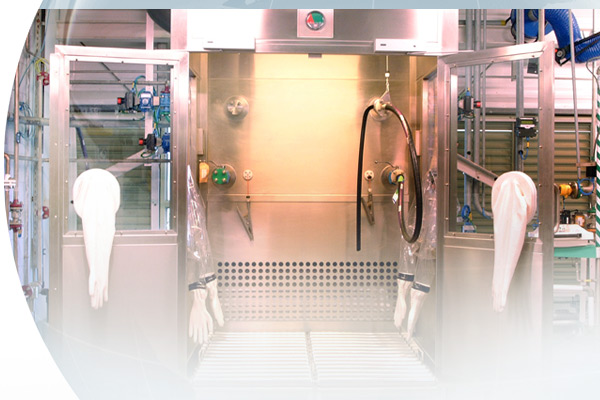

ClearSphere designs, manufactures, installs and validates containment solutions. It provides bespoke and standard equipment to satisfy its clients’ specific requirements.
spacer
spacer

Sampling Booths

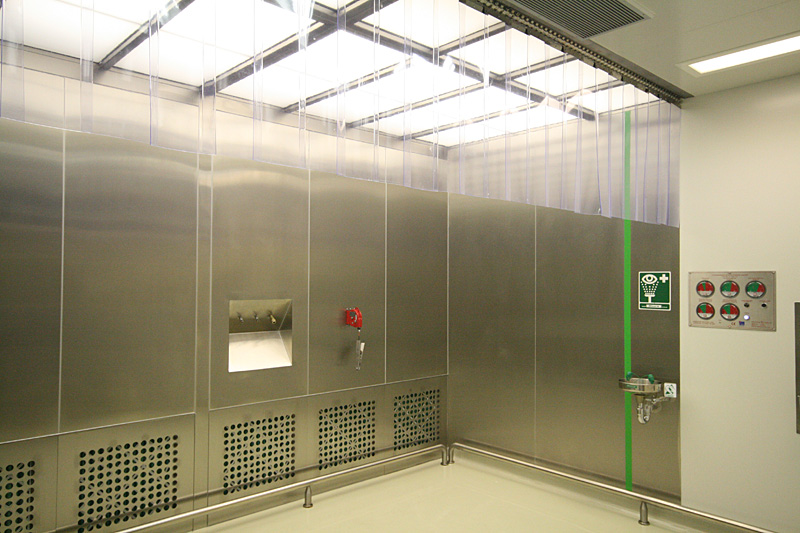

ClearSphere’s QC material sampling booths are suitable for location in a goods inward warehouse. They are a fully self-contained facility complete with positive pressure air-lock which provides classified air, preventing any risk of cross-contamination.

Booth options include:

  • Powder-coated and or stainless steel construction
  • Safe-change filtration
  • Integrated cooling system
  • Hazardous area electrics
  • Atex certification
  • Automatic control systems
  • Ventilated containment benches
  • Single pass and re-circulatory air-throughput

click to enlarge - ClearSphere Sampling Booths

click to enlarge - ClearSphere Sampling Booths

Back to top of page

linebreak

Dispensing Booths/Suites



Dispensary Booth

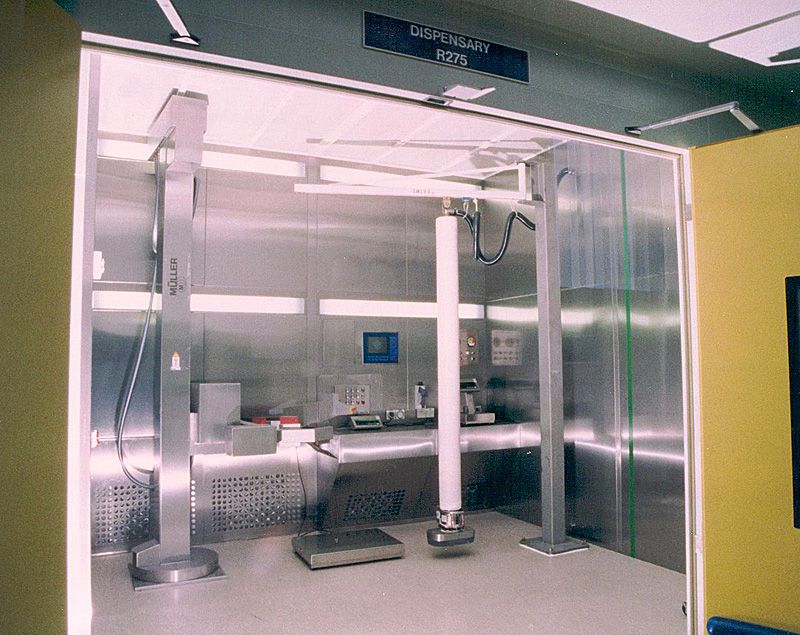

ClearSphere's dispensary booths are designed to allow safe handling of powders for weighing and dispensing operations.

As well as the supply of the booth, ClearSphere will integrate the materials handling equipment including:

  • Dispensary management system
  • Conveyors and hoists
  • Vacuum lift and transfer equipment

With all ClearSphere containment booths, the dispensing booth options also include:

  • Powder-coated and stainless steel construction
  • Safe-change filtration
  • Integrated cooling system
  • Hazardous area electrics
  • Atex certification
  • Automatic control systems
  • Ventilated containment benches





click to enlarge - ClearSphere Dispensing Booths

click to enlarge - ClearSphere Dispensing Booths

Back to top of page

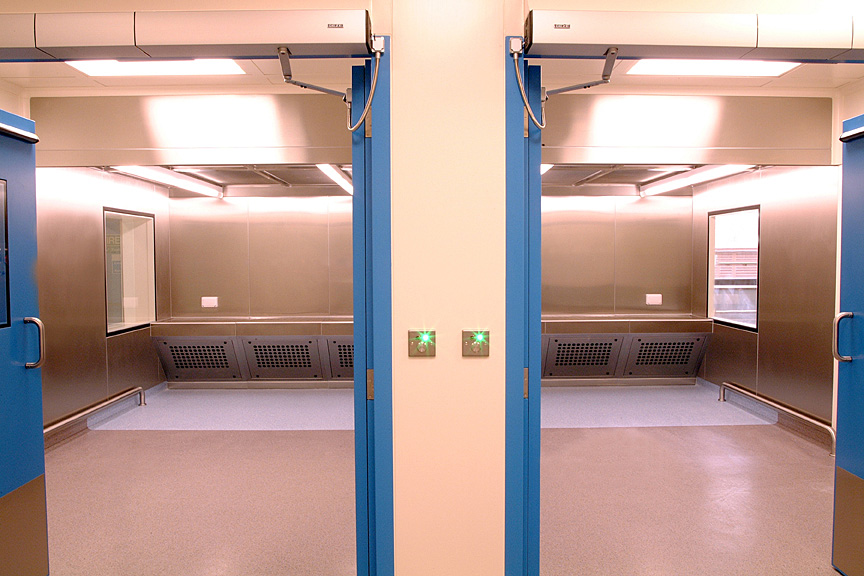

Dispensing Suite

As a single sourse supplier, ClearSphere will design, install and validate your "Complete Dispensing Suite" as a Turn-Key Package including:

  • Integrated Cleanroom Walls, Ceiling, Doors, Floors, etc.
  • H.V.A.C.
  • Mechanical and Electrical Services
  • Materials Handling



click to enlarge - ClearSphere Dispensing Suite
linebreak

Charging/Discharging Booths

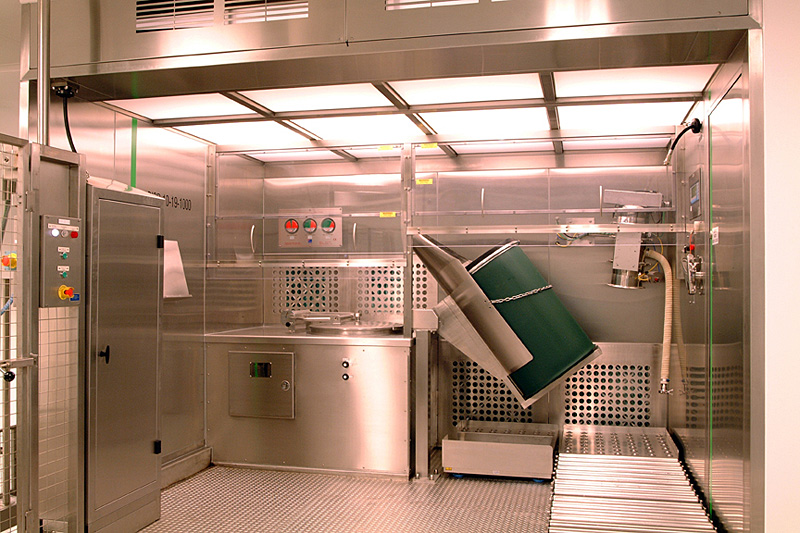

ClearSphere’s Charging/Loading Booths are designed to allow the safe Charging of product to a Dryer or Reactor with features including:

  • Same floor charging
  • Drum lift equipment
  • C.I.P. systems
  • Through floor charging
  • Charging hoppers
  • High level extraction
  • Waste removal ports
  • Roller conveyors and weigh equipment



click to enlarge - ClearSphere Charging/Loading Booth Back to top of page

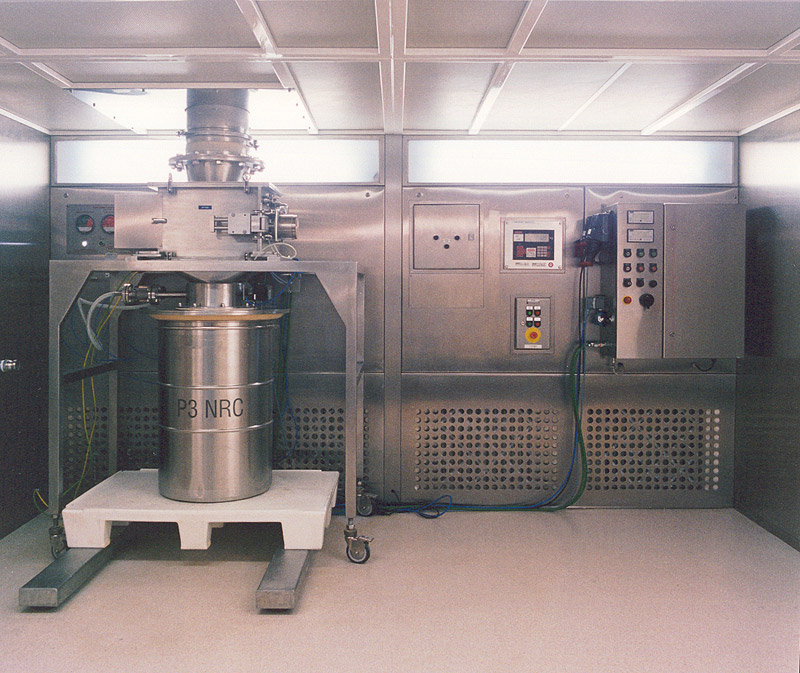

ClearSphere’s containment booths may be used for the safe off-loading of hazardous material from dryers and centrifuges.

Utilising a pack-out station from our standard range for primary containment and the booth itself for secondary containment, high levels of operator and product protection can be achieved. With specific reference to operator protection, O.E.L.s of <10ug/m3 are easily achievable.

A number of options and features include:

  • Through Floor Off-Loading
  • Pack-Off Stations
  • Single Pass and re-circulatory air through
  • B.M.S. interface
  • Weigh scales
  • Flush mount displays
  • Hazardous area electrics incl. Atex certification





click to enlarge - ClearSphere COntainment Booth
linebreak

Solvent Booths

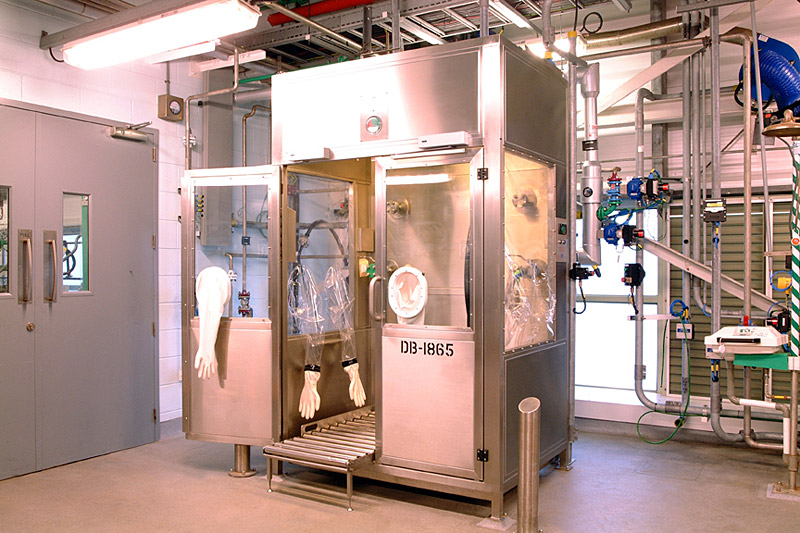

Used mainly in primary pharmaceutical operations the ClearSphere solvent handling booth offers a safe user friendly solution to liquid transfer.

Based on a single pass or once thru design with horizontal laminar airflow, containment is assured by operating the system under a monitored negative pressure.

Options and Features include:

  • Sliding front sash to drum entry door
  • Lance and weigh equipment
  • Spillage sump
  • Clear solid and or HFW clear flexible side walls
  • Built-In gauntlets
  • Roller conveyors



click to enlarge - ClearSphere Solvent Booth Back to top of page
linebreak

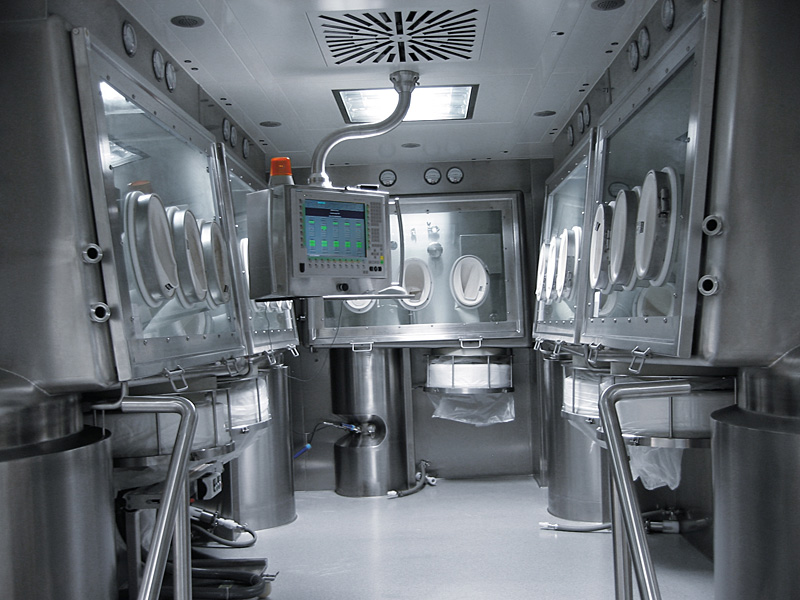

Isolators and Containment



Full containment systems for contamination-free handling of highly active and toxic substances (API) and isolators for sterile applications.

All modules and components are meticulously designed to meet the strictest cGMP and FDFA requirements for the production of toxic and biologically active substances.

A diverse range of proven isolator components is available:

  • Automatic rapid-transfer port
  • Alpha/Beta ports
  • Waldner continuous liner system
  • Push-push filter system
  • Sealing module
  • Pneumatically sealed front panes/sliding doors
  • Glove tester
click to enlarge - ClearSphere Isolators and Containment Back to top of page
linebreak

Glove Testers


The safety of a glove box isolator depends on the integrity of the gloves.

In association with Waldner process systems, ClearSphere are able to provide a Glove Tester that checks the integrity of the gloves that are installed in an isolator.

The unit is mobile and can be removed from the workplace after the test is complete. The tester meets the highest FDA and cGMP qualifications.
click to enlarge - ClearSphere Glove Testers Back to top of page
linebreak

Laboratory Containment Stations



The ClearSphere Lab Containment Station provides a clean and safe environment in which lab samples can be obtained, weighed, sub-divided or mixed.

By utilising the technology developed for its range of containment booths, ClearSphere can provide a bespoke system to suit our client’s specific requirements with containment levels down to 10um/m3 all within a foot print of less than one square metre.





click to enlarge - ClearSphere Laboratory Containment Solutions Back to top of page
linebreak

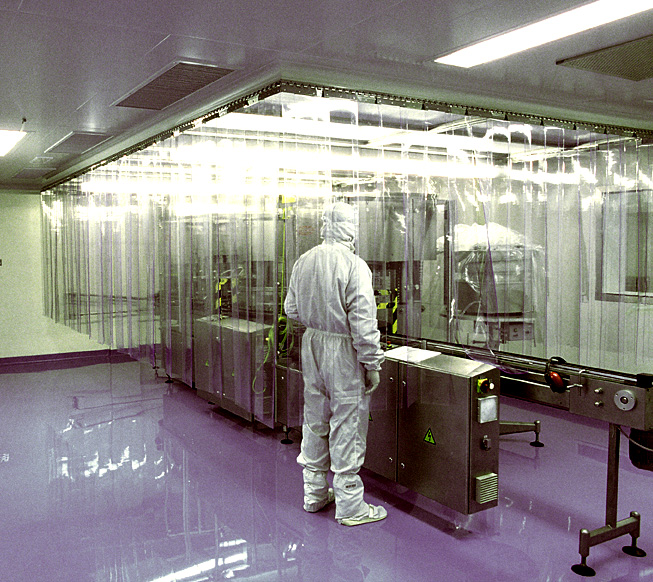

Laminar Flow Hood



ClearSphere provides a range of bespoke ceiling mounted LAF Hoods ranging in size from 600mm x 600mm to 12,000mm x 2,500mm. Complete with remote air handling unit controls or self-contained stand alone control. All systems are FAT compliant prior to installation.



click to enlarge - ClearSphere Laminar Flow Hood Back to top of page
linebreak

Safety Cabinets

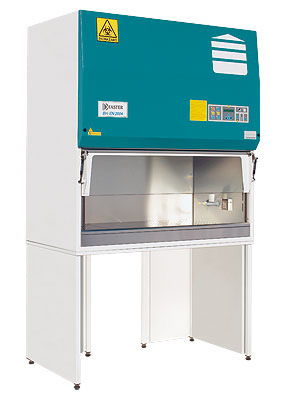

ClearSphere provides Standard Class I, II and III Safety Cabinets which can be custom designed and built to meet client’s specific requirements. The Class I and Class II are available with an analogue or digital control system while the Class III features a sloping screen and two eight inch glove ports.

click to enlarge -ClearSphere Safety Cabinets Back to top of page
linebreak

Ducted Fume Cupboards

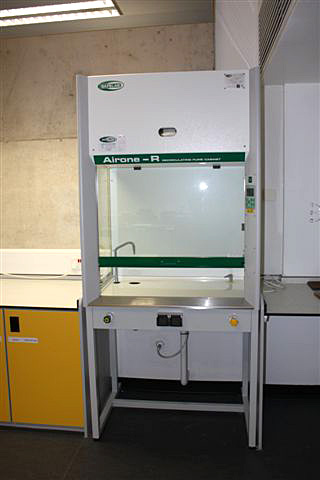

The Airone X

Designed to comply with BS7258:1994 Parts I & IV and tested by CLEAPSS. The Airone X complies with Building Bulletin 88 from the Department of Education and Employment.

Offers excellent operator protection from hazardous substances, can be bench mounted or free standing, available in four standard width sizes, plus optional services and storage available.

click to enlarge - ClearSphere Ducted Fume Cupboards Back to top of page

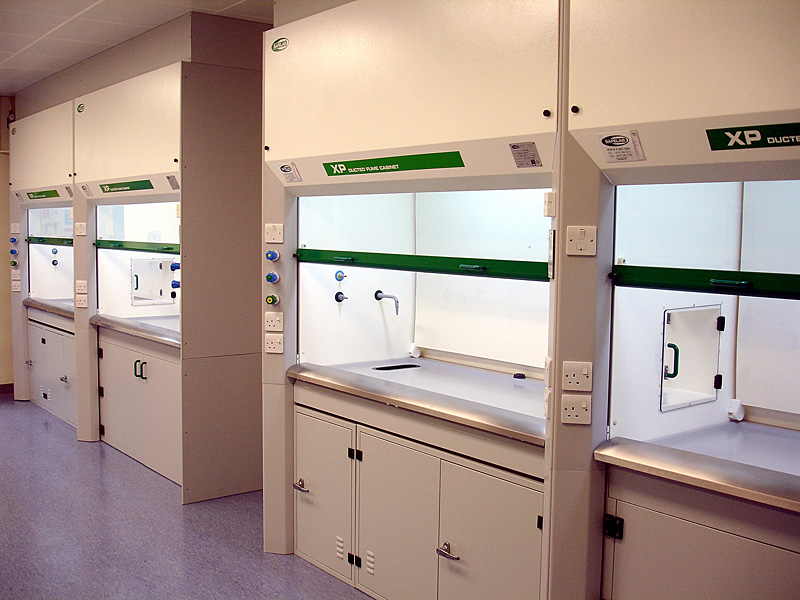

The Airone XP

Specifically designed to comply with BS EN 14175 and BS7258:1994 Parts I & IV.

The Airone XP offers excellent operator protection.  It is ideally suited where high volumes of hazardous or extremely aggressive substances are being used.  Available in a choice of sizes the XP can be bench mounted, freestanding or supplied as a walk-in version.  An extensive list of options allows services and materials to be tailored to each customer’s individual needs.



click to enlarge - ClearSphere Ducted Fume Cupboards
linebreak

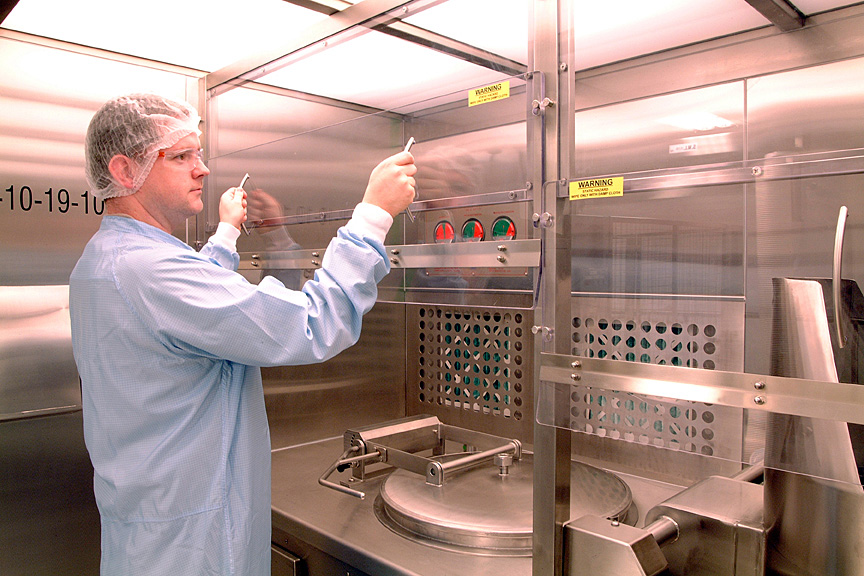

Bespoke Engineering



ClearSphere bespoke Containment Systems are designed and manufactured to client specific requirements and frequently inlcude "Once-Off" design projects such as:

  • Half Cell Safe-Change Housing
  • Reactor Specific Charge Booths
  • Dryer Off-Load Containment Rooms
  • Filter Stacks
  • Materials Handling Equipment



click to enlarge - ClearSphere Bespoke Engineering Back to top of page
linebreak

Vessels & Drying Technology

ClearSphere have partnered with Waldner Process Systems to provide its clients with the very latest in innovative technology.



Vessels and Skids

Vessel technology ranging from single preparation pressure and reaction vessels to complete units, container systems and single-layer pressure filters.

click to enlarge - ClearSphere Vessels and Skids Back to top of page

Drying Technology

Drying technology ranging from mobile vacuum contact dryers for dust free powder handling and vacuum tray dryers which conform to GMP standards to intermittent and circulating air dryers.

click to enlarge - ClearSphere Drying Technology
linebreak

Filtration

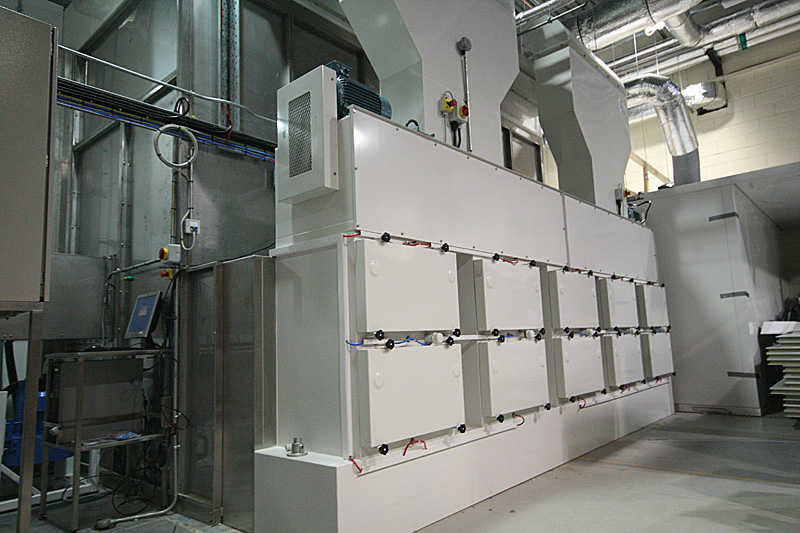

ClearSphere provide a range of cleanroom filtration products including:

  • HEPA & ULPA filters
  • Bespoke filter housings
  • Safe-change housings
  • Scan probes, safe change bags and rings





click to enlarge - ClearSphere Filtration Back to top of page
